We're beyond stoked to now have Crust framesets available at Dismount. Looking for a specific Crust frameset, colour or size? Want to talk builds? ! We've brought in the Nor'Easter Disc to start, but are happy to help make your Crust dreams reality!

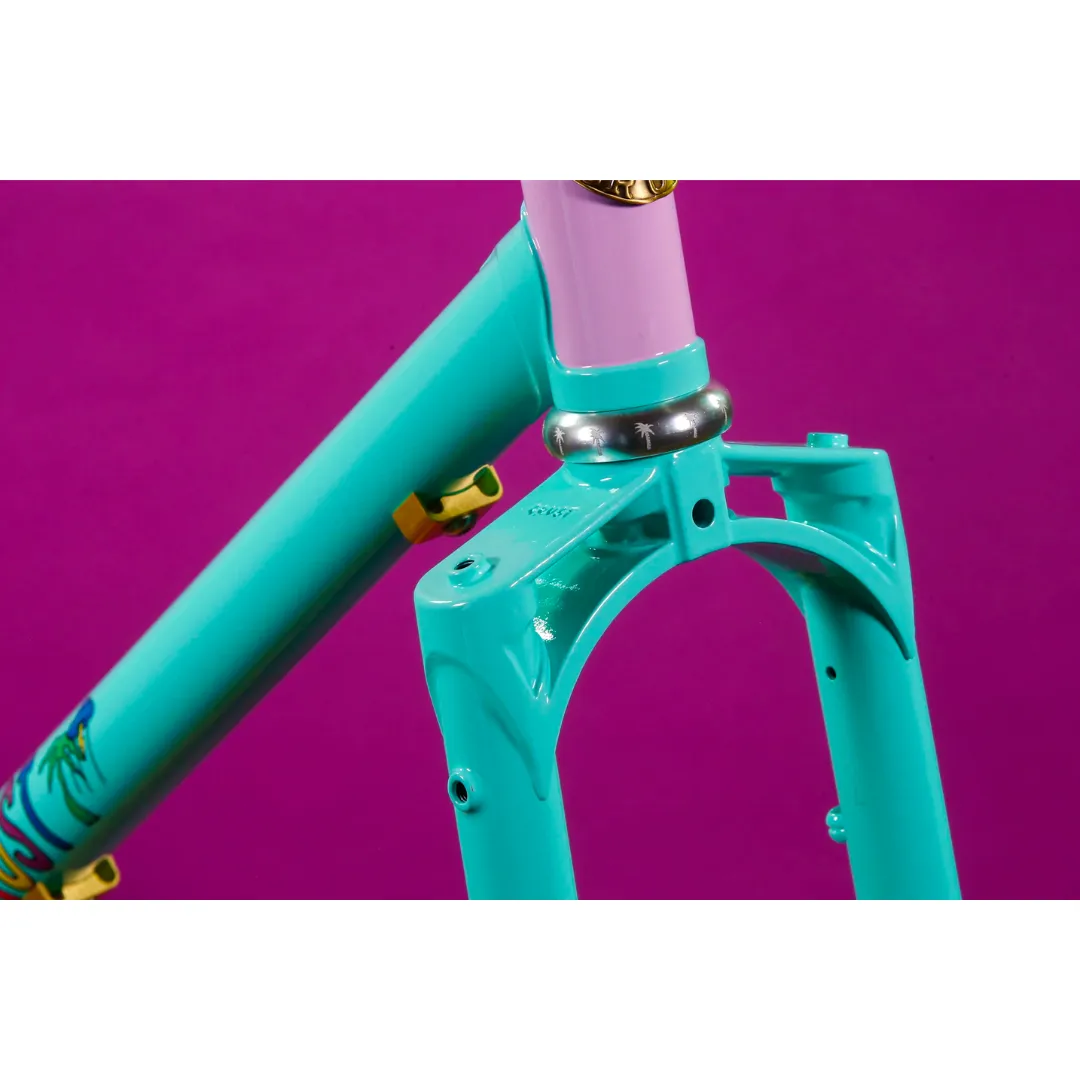

The Nor'Easter is the outcome of blending a Romanceür-esque tube set with the clearances of the Evasion. Like the Romanceür it is perfectly suited for going out for a couple of day jaunt with everything you will need for a whimsical time, but with the cushy tire clearances of an Evasion. Headset not included.
Features |
| The Disc Nor'E is meant to be 1x specific. It could potentially be set up with a double, but its on you to figure it out. The Canti Nor'E can be set up 1x or with a square taper double. |
| The Nor'Easter has a 68mm bottom bracket shell with a wide chain stay. Recommended 1x cranks would be a White Industries G30, a Sram Dub-Wide Rival or Force Crank, a square taper crank (bb lengths vary from crank to crank I'd start around 113-117), or you can run a mountain spindle crank (WI M30/A30, Sram NX/GX etc.) with spacers between the bb shell and the bb. |
| Max Chainring Size- 40t |

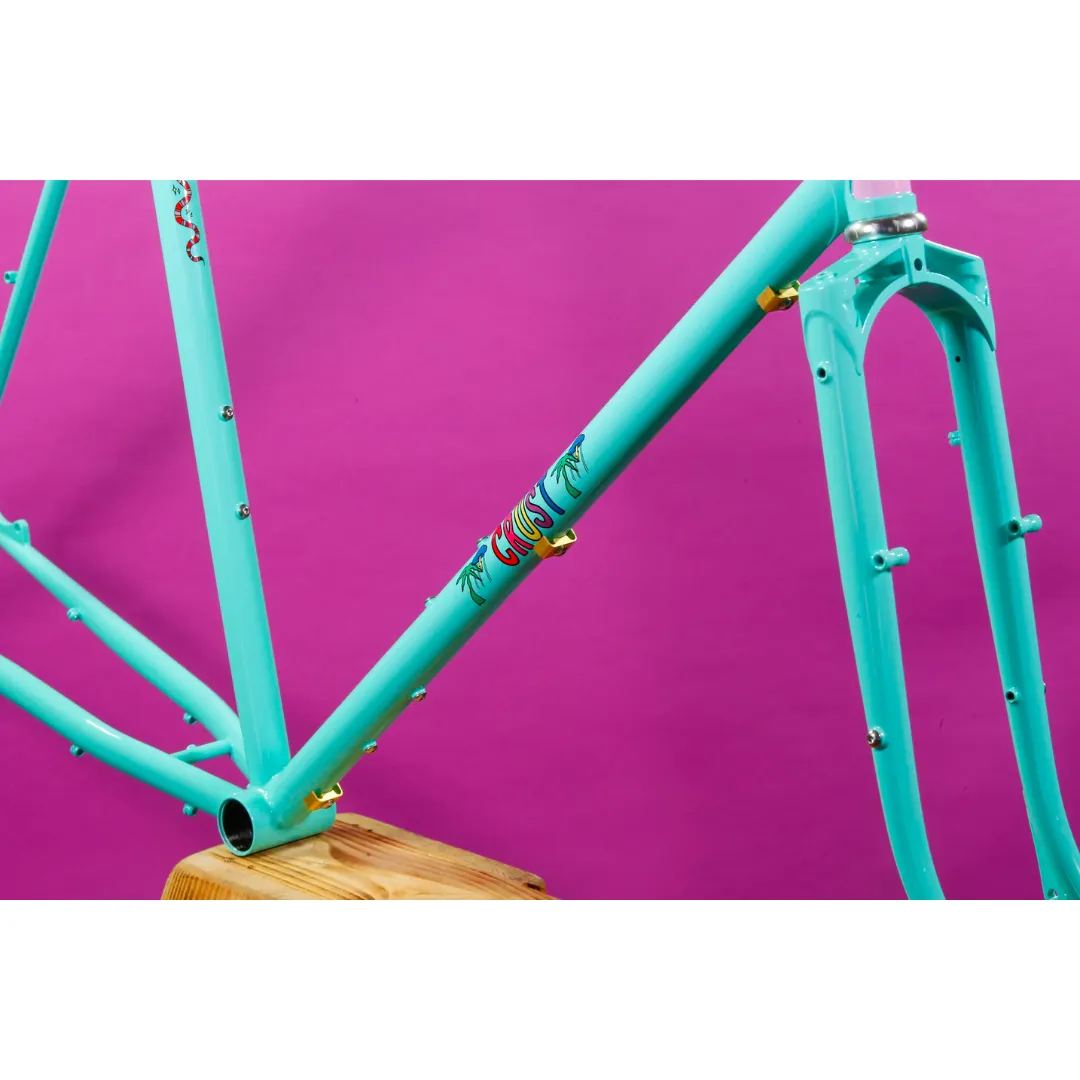

| The Disc version's rear brake routes down the bottom of the downtube using brass bolt on cable guides, while the Canti version has two cable stops on the bottom side of the top tube. |
| Front and rear thru axles are included with the Disc model. |
| The Disc version is I.S. mount. Uses a 160mm rotor front and rear. If you want to run a Palm Oil Brake kit, we have them for the Nor'Easter, but they unfortunately will not work with the 52cm, as the adjustment screw comes in contact with the seat stay. |
Specs |
| Frame | Handmade in Taiwan | Brazed Lug & TIG Weld Construction |

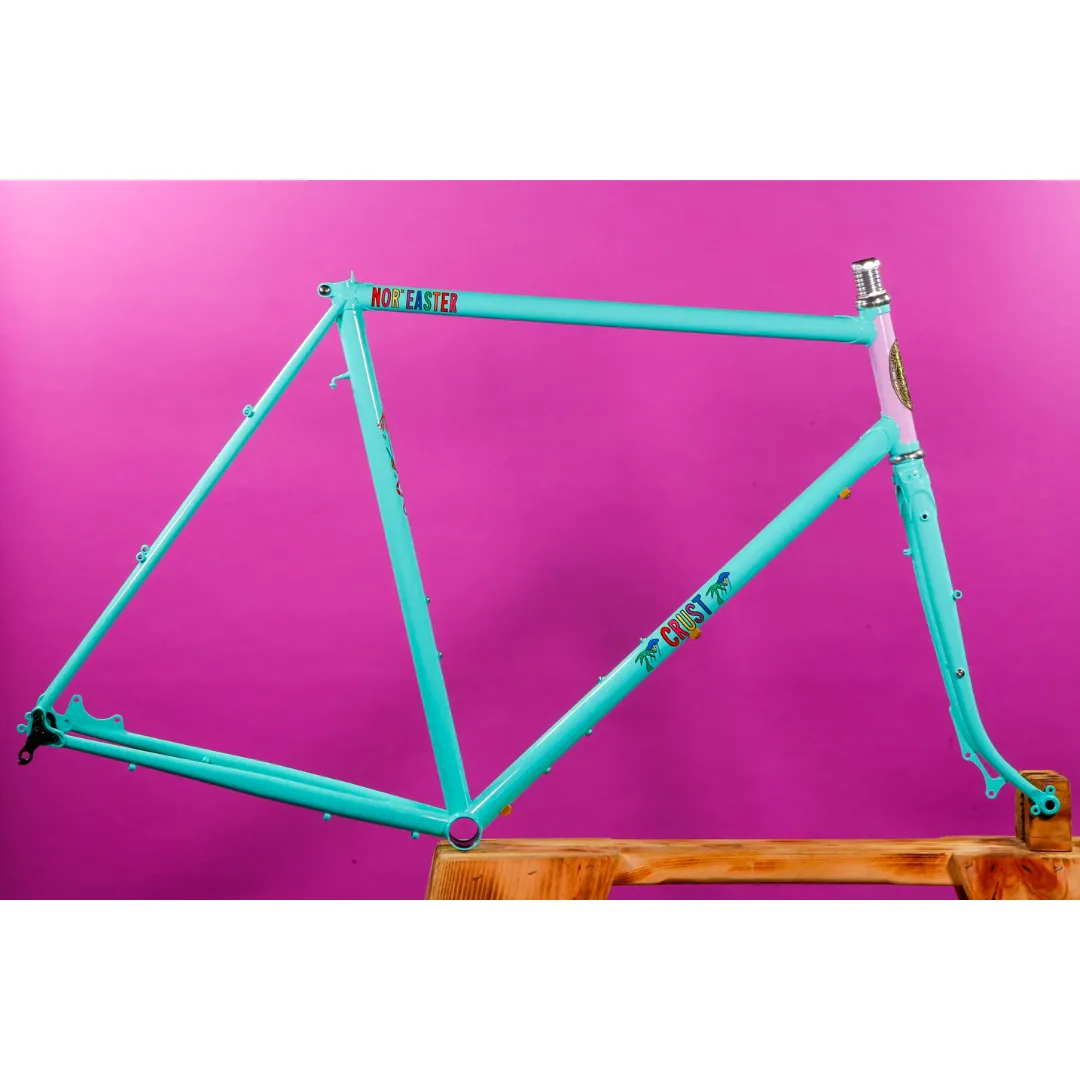

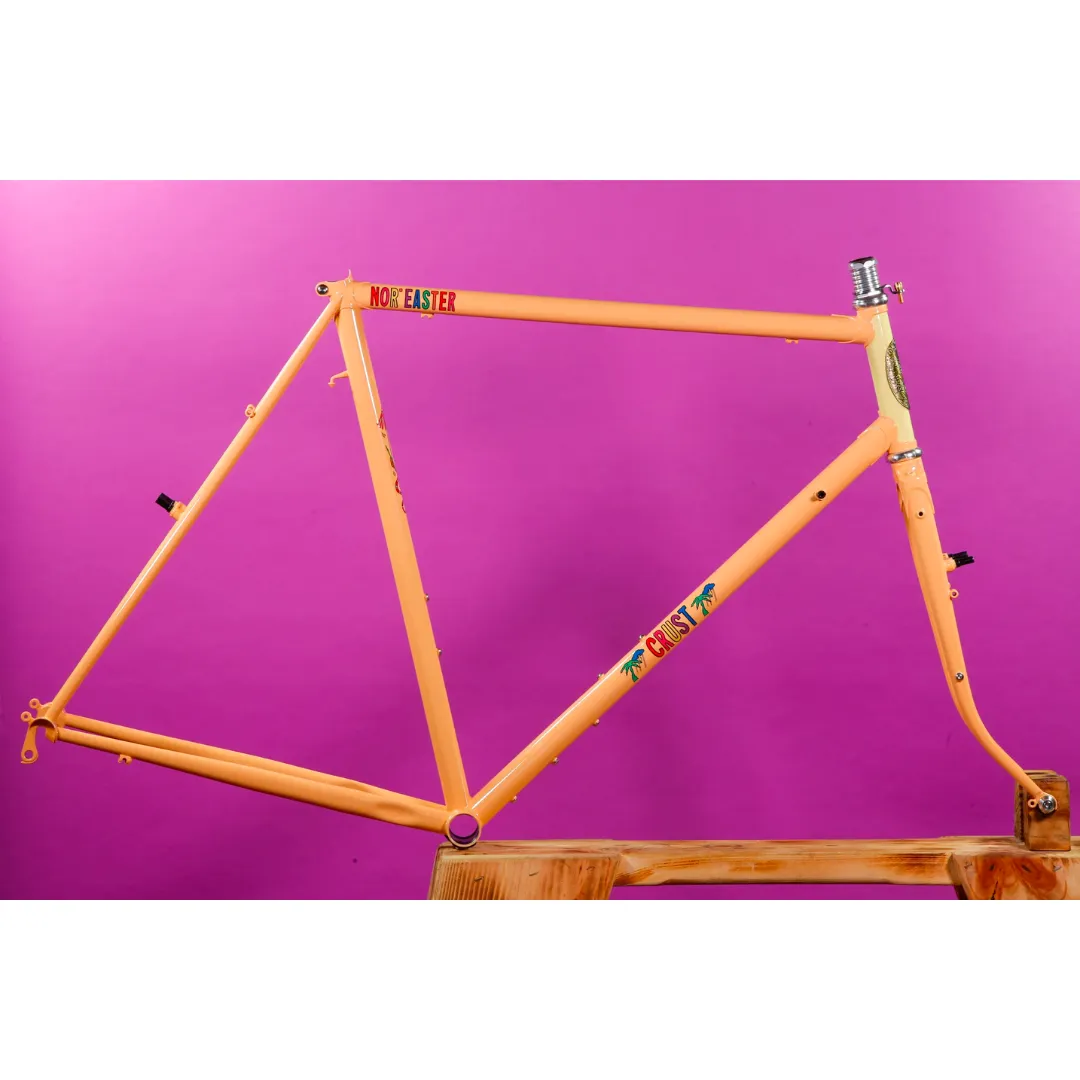

| Colours | Disc: Turquoise | Canti: Pastel Orange |
| Sizes | Small 52cm | Medium 55cm | Large 58cm | Extra Large 62cm (All sizes have a level top tube) |
| Mx Tire Size | Disc: 52cm- 26x2.8" (Can also run 27.5x2.8") 55cm- 27.5x2.8" (Can also run 26x2.8" or 29x2.0") 58cm- 27.5x2.8" (Can also run 26x2.8" or 29x2.0") 62cm*- 29x2.6" (Can also run 27.5x2.6") Canti: 52cm- 27.5x2.8" 55cm- 27.5x2.8" 58cm- 27.5x2.8" 62cm- 29x2.6" |
| Head Tube Diameter | 1" (Threaded Steerer) 26.4 crown race |
| Bottom Bracket | 68mm English (BSA) Threaded |
| Steerer Tube Length | Size Specific. Each size leaves some room for spacers. |
| Fork Spacing | Disc: 12x100mm | Canti: 9x100mm |
| Rear End Spacing | Disc: 12x142mm | Canti: 9x135mm |
| Disc Front Axle Thread Pitch & Length | 1.5x120mm |
| Disc Rear Axle Thread Pitch & Length | 1.5x164mm |
| Seat Post Diameter | 27.2mm |
| Front Derailleur Clamp Diameter | 28.6mm |
| Weight | Disc Frame (55cm): 2.19kg (4lb 14oz) Fork: 1.22kg (2lb 11oz) | Canti Frame (62cm): 2.31kg (5lb 2oz) Fork: 1.12kg (2lb 6oz) |
